오늘은 1일차에 이어 진행해보도록 하겠습니다.
12. wordpress rds 연결 스크립트 작성
우선 user_data에 사용할 wordpress와 rds 연결하는 스크립트를 먼저 만들어 줍니다.
=> install.sh
#! /bin/bash
wget https://ko.wordpress.org/wordpress-5.7.8-ko_KR.tar.gz
tar -xvf wordpress-5.7.8-ko_KR.tar.gz
yum install -y httpd
cp -r wordpress/* /var/www/html/
amazon-linux-extras enable php8.0
yum install -y php php-fpm php-pdo php-mysqlnd
cp /var/www/html/wp-config-sample.php /var/www/html/wp-config.php
sed -i 's/DirectoryIndex index.html/DirectoryIndex index.php/g' /etc/httpd/conf/httpd.conf
sed -i 's/database_name_here/wordpress/g' /var/www/html/wp-config.php
sed -i 's/username_here/root/g' /var/www/html/wp-config.php
sed -i 's/password_here/It12345!/g' /var/www/html/wp-config.php
sed -i 's/localhost/{rds의 엔드포인트}/g' /var/www/html/wp-config.php
systemctl enable --now httpd
그리고 user_data에 위 스크립트를 넣어준다.
=> ec2.tf
resource "aws_instance" "ksh-ec2_weba" {
ami = "ami-084e92d3e117f7692"
instance_type = "t2.small"
key_name = "ksh1"
vpc_security_group_ids = [aws_security_group.ksh_sg.id]
availability_zone = "ap-northeast-2a"
private_ip = "100.0.1.11"
subnet_id = aws_subnet.ksh_weba.id
user_data = file("./install.sh")
tags = {
Name = "ksh-ec2-weba"
}
}
output "ec2-weba-ip" {
value = aws_instance.ksh-ec2_weba.id
}
13. 로드밸런서 생성
resource "aws_lb" "ksh_alb" {
name = "ksh-alb"
internal = false
load_balancer_type = "application"
security_groups = [aws_security_group.ksh_sg.id]
subnets = [aws_subnet.ksh_weba.id, aws_subnet.ksh_webc.id] # public 서브넷
tags = {
Name = "ksh-alb"
}
}
output "alb_dns_name" {
value = aws_lb.ksh_alb.dns_name
}
14. 로드밸런서 target 그룹 생성
로드밸런서 리스너 보다 target 그룹을 먼저 생성해야되는데, 이유는 리스너가 target 그룹에 프로토콜:포트를 전달 해야하기 때문이다.
resource "aws_lb_target_group" "ksh_albtg" {
name = "ksh-albtg"
port = 80
protocol = "HTTP"
vpc_id = aws_vpc.ksh_vpc.id
health_check {
enabled = true
healthy_threshold = 3
interval = 5
matcher = "200"
path = "/health.html"
port = "traffic-port"
protocol = "HTTP"
timeout = 2
unhealthy_threshold = 3
}
tags = {
Name = "ksh-albtg"
}
}
그리고 헬스체크를 위한 health.html 페이지를 만들어 준다. 그 명령어는 install.sh에 같이 넣어준다.
#! /bin/bash
wget https://ko.wordpress.org/wordpress-5.7.8-ko_KR.tar.gz
tar -xvf wordpress-5.7.8-ko_KR.tar.gz
yum install -y httpd
cp -r wordpress/* /var/www/html/
amazon-linux-extras enable php8.0
yum install -y php php-fpm php-pdo php-mysqlnd
cp /var/www/html/wp-config-sample.php /var/www/html/wp-config.php
sed -i 's/DirectoryIndex index.html/DirectoryIndex index.php/g' /etc/httpd/conf/httpd.conf
sed -i 's/database_name_here/wordpress/g' /var/www/html/wp-config.php
sed -i 's/username_here/root/g' /var/www/html/wp-config.php
sed -i 's/password_here/It12345!/g' /var/www/html/wp-config.php
sed -i 's/localhost/{rds엔드포인트}/g' /var/www/html/wp-config.php
cat > /var/www/html/health.html << eof # 이 부분 추가
<html><body><h1>hello</h1></body></html> # 이 부분 추가
eof # 이 부분 추가
systemctl enable --now httpd
15. 로드밸런서 리스너 생성
resource "aws_lb_listener" "ksh_alblis" {
load_balancer_arn = aws_lb.ksh_alb.arn
port = 80
protocol = "HTTP"
default_action {
type = "forward"
target_group_arn = aws_lb_target_group.ksh_albtg.arn
}
}
16. ami 이미지 생성
오토스케일링 할 때 사용할 이미지를 생성을 해줍니다.
resource "aws_ami_from_instance" "ksh_ami" {
name = "ksh-ami"
source_instance_id = aws_instance.ksh-ec2_weba.id
depends_on = [
aws_instance.ksh-ec2_weba
]
tags = {
Name = "ksh-ami"
}
}
17. 오토스케일링 시작 템플릿 생성
오토스케일링 그룹을 생성하기 전에 오토스케일링이 진행 될 때 사용되는 시작 템플릿을 생성 해준다.
resource "aws_launch_template" "ksh_lt" {
name = "ksh-lt"
block_device_mappings {
device_name = "/dev/sdf"
ebs {
volume_size = 10
volume_type = "gp2"
}
}
image_id = aws_ami_from_instance.ksh_ami.id
instance_type = "t2.micro"
key_name = "ksh1"
vpc_security_group_ids = [aws_security_group.ksh_sg.id]
tag_specifications {
resource_type = "instance"
tags = {
Name = "ksh-temp"
}
}
# user_data = filebase64("${path.module}/install.sh") # 반드시 암호화한 UserData 사용
}
18. 오토스케일링 그룹 생성
resource "aws_autoscaling_group" "ksh_atsg" {
name = "ksh-atsg"
min_size = 1
max_size = 6
desired_capacity = 1
health_check_grace_period = 60
health_check_type = "EC2"
force_delete = false
vpc_zone_identifier = [aws_subnet.ksh_weba.id,aws_subnet.ksh_webc.id]
# vpc_zone_identifier = concat(aws_subnet.ksh_web[*].id)
launch_template {
id = aws_launch_template.ksh_lt.id
version = "$Latest"
}
}
19. 오토스케일링 그룹을 로드밸런서에 붙이기
resource "aws_autoscaling_attachment" "ksh_atsgat" {
autoscaling_group_name = aws_autoscaling_group.ksh_atsg.id
lb_target_group_arn = aws_lb_target_group.ksh_albtg.arn
}
20. RDS 생성
resource "aws_db_subnet_group" "ksh_dbsg" {
name = "ksh-dbsg"
subnet_ids = [aws_subnet.ksh_dba.id,aws_subnet.ksh_dbc.id]
}
resource "aws_db_instance" "ksh_db" {
allocated_storage = 20
storage_type = "gp2"
engine = "mysql"
engine_version = "8.0"
instance_class = "db.t2.micro"
db_name = "wordpress"
identifier = "mydb"
username = "root"
password = "It12345!"
parameter_group_name = "default.mysql8.0"
availability_zone = "ap-northeast-2a"
db_subnet_group_name = aws_db_subnet_group.ksh_dbsg.id
vpc_security_group_ids = [aws_security_group.ksh_sg.id]
skip_final_snapshot = true
tags = {
Name = "ksh-db"
}
}

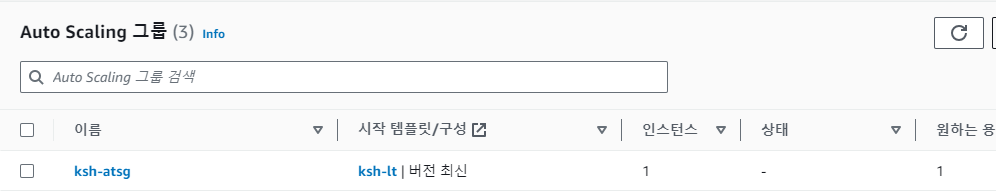

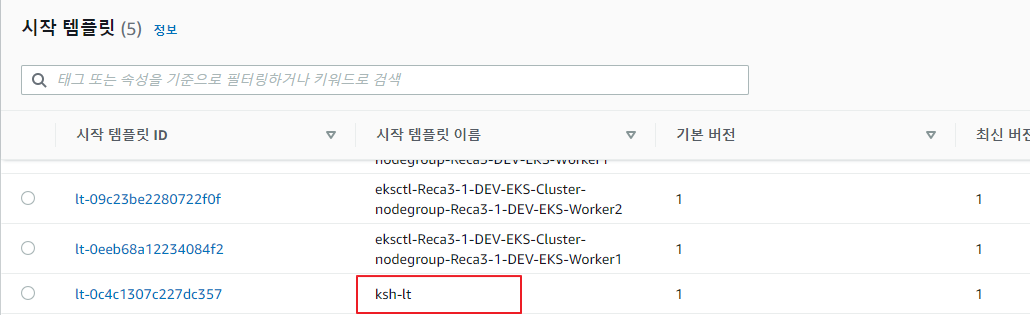

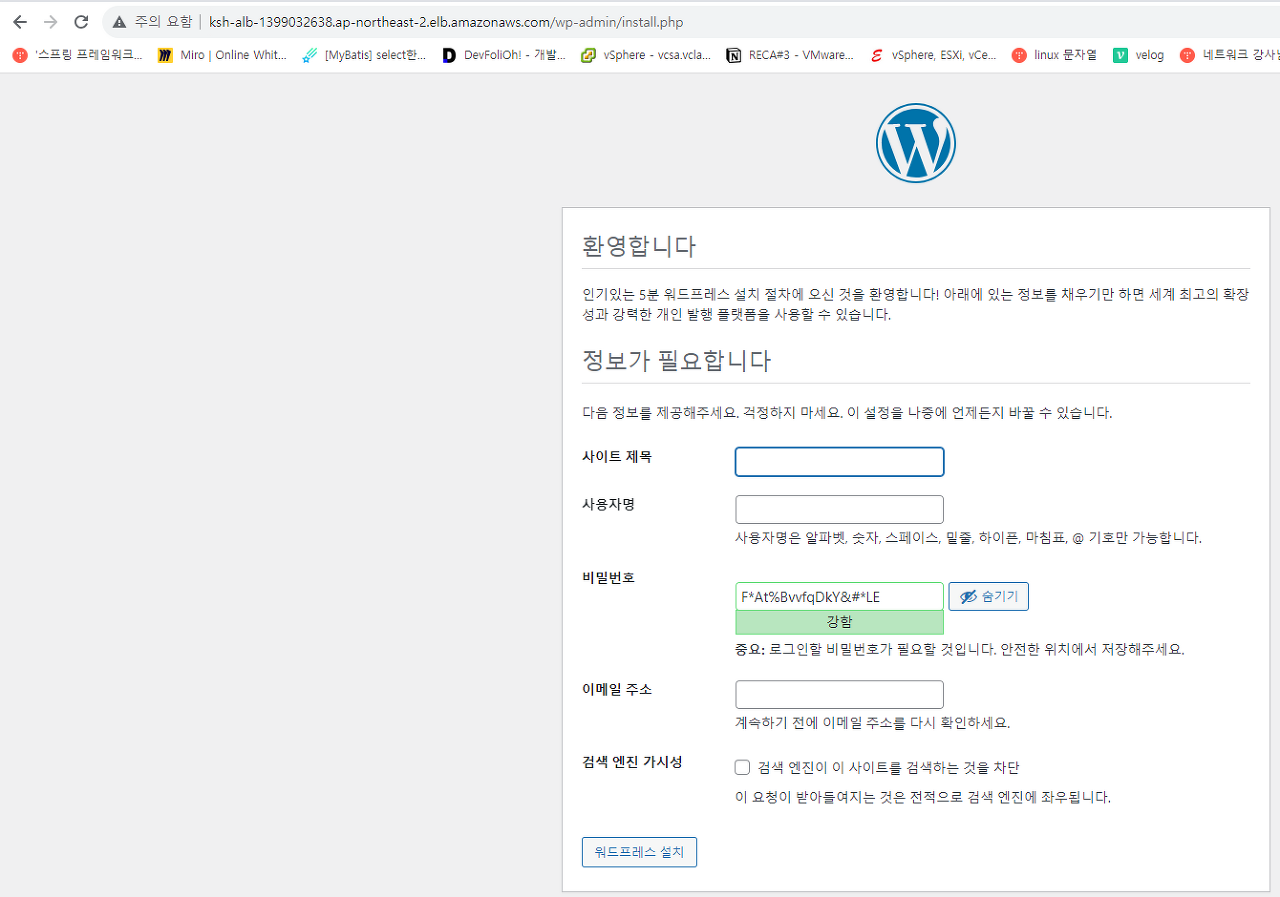

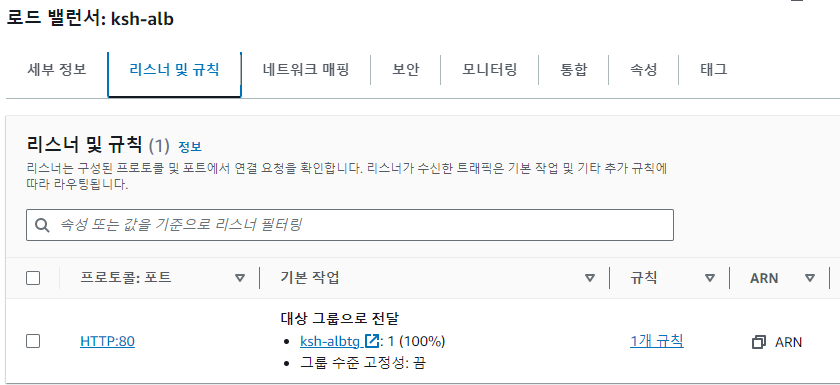

최종 결과
